Tooling Products

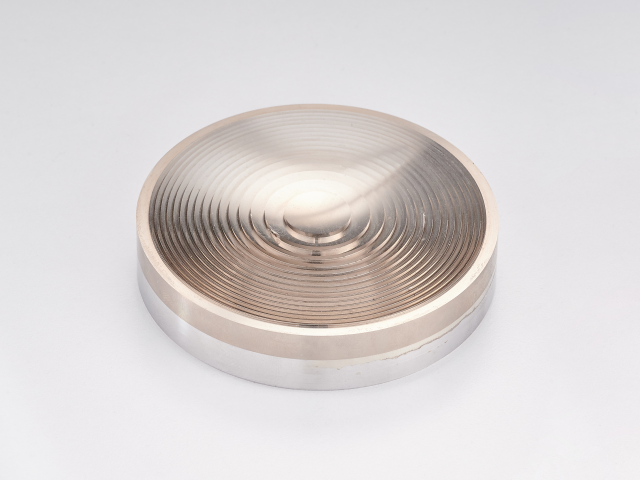

Base mold development/ Diffraction element/ Array processing/ Multi-stage spherical processing/ 3D Torics/ Lens array/ 3D off-axis/ Free Foam

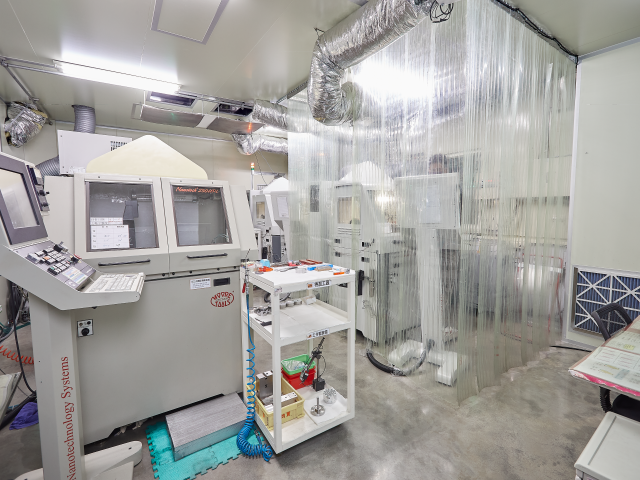

We invested high-precision processing equipment, like three-axis (X, Z & C-axis) ultra-precision lathe. The air bearing is a core component, the swing amount is less 10nm and controllable accuracy of each axis direction can reach 1nm when the main spindle speed at 3000RPM. Therefore, the component can be manufactured based on geometric precision PV value less than 0.2μm, and the surface roughness Ra is less than 20nm.
-Related Equipment-
We invested high-precision processing equipment, like three-axis (X, Z & C-axis) ultra-precision lathe. The air bearing is a core component, the swing amount is less 10nm and controllable accuracy of each axis direction can reach 1nm when the main spindle speed at 3000RPM. Therefore, the component can be manufactured based on geometric precision PV value less than 0.2μm, and the surface roughness Ra is less than 20nm.
-Related Equipment-
-
Based on the principle of high quality manufacture require higher quality measurements, we invested Taylor Hobson Form Talysurf for measurement. The accuracy is less than 0.1μm, the repeatability accuracy is less than 0.02μm. In addition to Taylor Hobson Form Talysurf, we also have other measurements to make sure the quality, such as metallurgical microscope and it can be magnification to 2000X. The laser projector is using shadow measurement method and the accuracy is 0.4μm. -
Application Products:

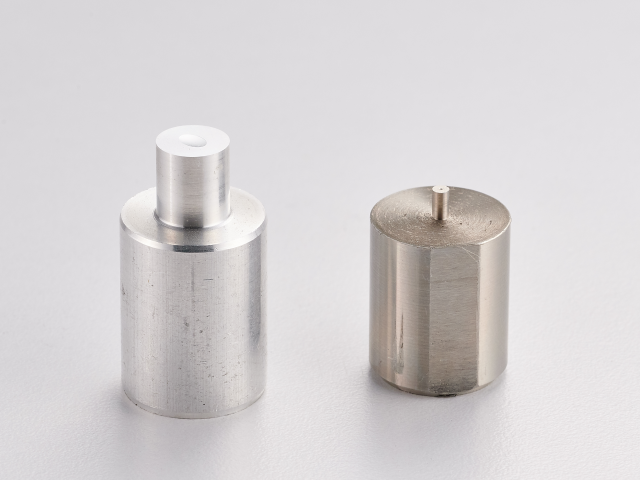

- Insert of Contact Lens (PV: 0.1206μm, Ra 1.5nm)
- Insert of Free foam(PV: 2.7μm, Ra 8.6nm)
- Insert of Lens(PV: 0.1μm, Ra 0.3nm)

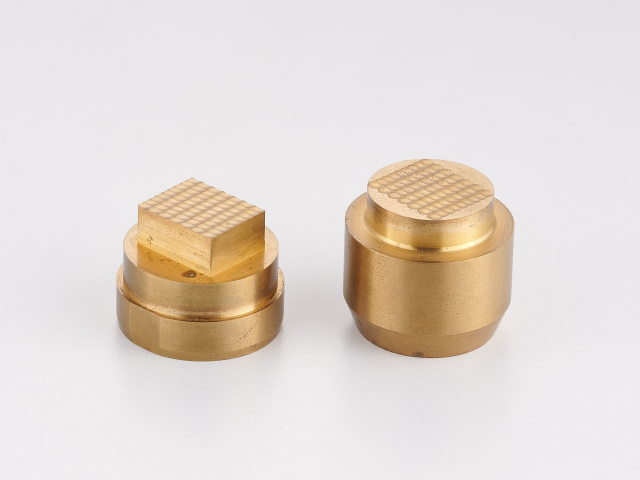

- Mini Led
