Lens Molding

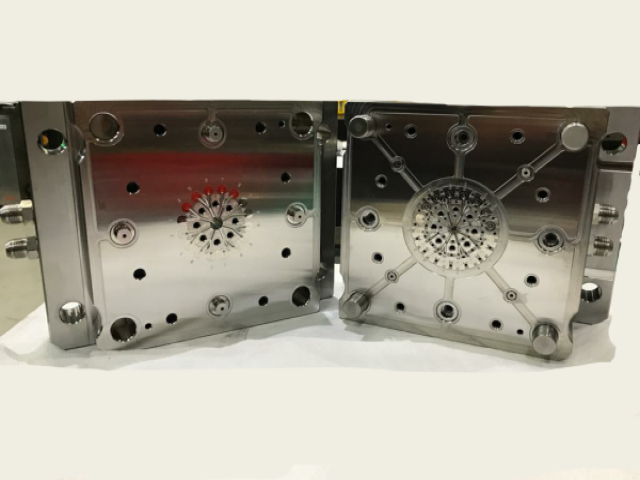

High Precision Optical Lens Mold :
The mold is fully designed and developed by Jun He and has a patented 3D combination molding.
1. 12-cavity
2. 16-cavity
3. 32-cavity
Suitable for lenses with an OD under Ø9mm
Mold Concentricity <0.5μm
Lens Parts Concentricity <1μm
Accessories :

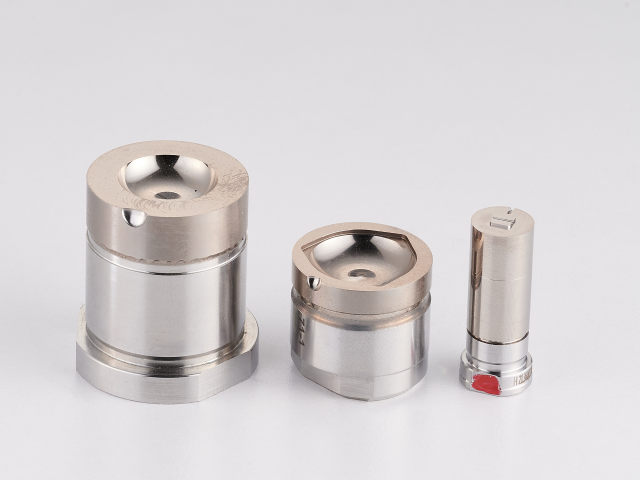

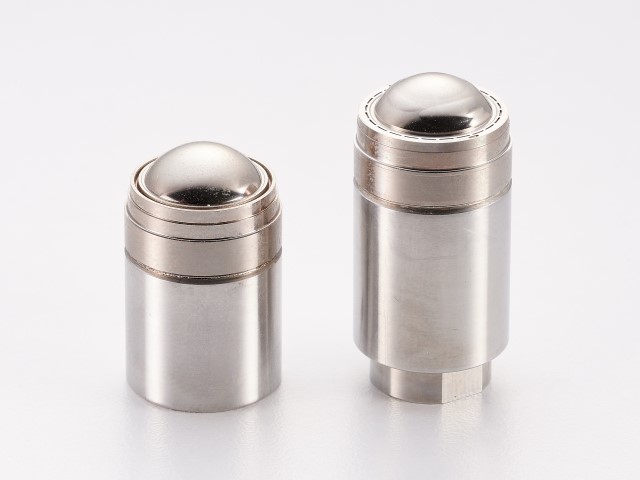

1. Core mold
2. Precise positioning
3. Heat shield (glass heat shield/metal heat shield)
-Related Products-
The mold is fully designed and developed by Jun He and has a patented 3D combination molding.
1. 12-cavity
2. 16-cavity
3. 32-cavity
Suitable for lenses with an OD under Ø9mm
Mold Concentricity <0.5μm
Lens Parts Concentricity <1μm
Accessories :
1. Core mold
2. Precise positioning
3. Heat shield (glass heat shield/metal heat shield)
-Related Products-
-
Optical lenses are widely used in every field nowadays. From the early days, they were mainly used in professional photography lenses. Now they can be seen everywhere, such as home security lenses, ADAS, virtual reality, medical industry and other applications. -

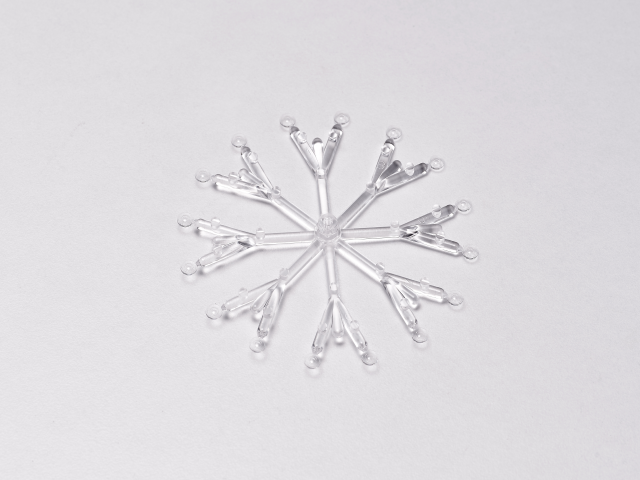

16-cavity lens real performance by using standard inserts :
100% production yield rate
Geometry accuracy < 1μm -

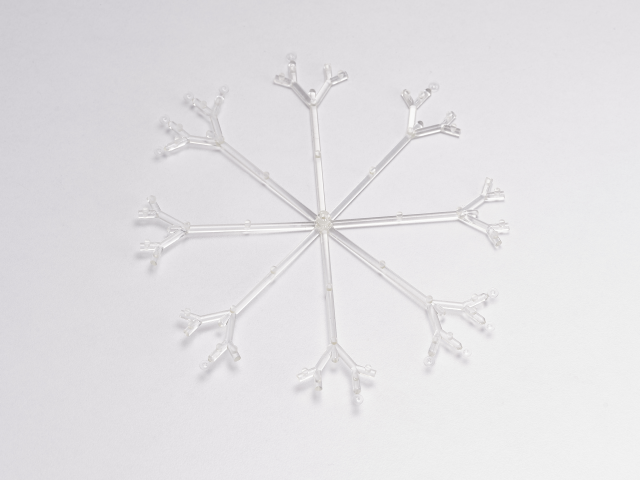

32-cavity lens real performance by using standard inserts :
100% production yield rate
Geometry accuracy < 1μm
